3U Standard Size 2.2Kwh NMC ESS Battery For Home Energy Storage

Product Categories
Soundon New Energy Technology Co,.Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

3U Standard Size 2.2Kwh NMC ESS Battery For Home Energy Storage

  • 1
  • 2

Brand Name : Soundon

Model Number : SD-ESS-25.55V87.5

Certification : CE,UN38.3,ROHS,MSDS,UL

Place of Origin : China

MOQ : 50

Price : Negotiable

Supply Ability : 300 units / week

Delivery Time : sample for a week ,mass production around 30-45 days

Packaging Details : carton box pacage

Nomial Voltage : 25.55V

Capacity : 87.5Ah

working voltage : 21-29.4V

Rapid Charge current : 20A

Maximum charge &discharge current : 50A

Standard discharge current : 30A

dimension : L≤482mm,W≤400mm,H≤133mm

Cycle life : >3000 cycles

Contact Now

2.2Kwh NMC ESS Battery With UL Certificated Battery cell And 3U Standard Size For Solar And Home Energy Storage

Specification :

Battery Cell :

Rated Voltage 3.65V
Capacity Rated Capacity: 17.5Ah
Charge Cut off Voltage: 4.2V±0.03V
Impedance ≤3.5 mΩ

Battery Block

Battery cell SEPNi8688190P
Battery cell capacity Ah 17.5Ah
Configuration 5P1S
Dimension mm
(H*W*T)		 232.5*97*45.3
Module Rated Capacity Ah/Wh 87.5AH
Module Rated Voltage V 3.65
Module Weight Kg 1.61
Module Weight Wh/Kg 198
Max plus charge current 1.5C
Max discharge current 3C


Battery Pack

Configuration 5Parallel 7series
Capacity Rated Capacity: 87.5Ah Standard Discharge Current:
0.5C
Discharge Cut off Voltage:21V

Voltage

 Average Voltage:87.5Ah

Standard Discharge Current:
0.5C

Discharge Cut off Voltage:21V

Working voltage		 21~29.4V DC

Charge Condition		 standar charge current :10A
Rapid Charge current:20A
Maximum Charge Current: 50A
Discharge Condition standar discharge current :30A
Maximum disCharge Current: 50A
Indepedance
≤150mΩ
working Temperature

Charge :(0～40) ℃

discharge:(-10～60)℃


(≤80% humidity)
Cycle life 3000 cycles (0.5C 80%DOD)
Storage Temperature

≦1 month:-10～45℃

≦3month:-10～25℃

 Relative humidity≤90%

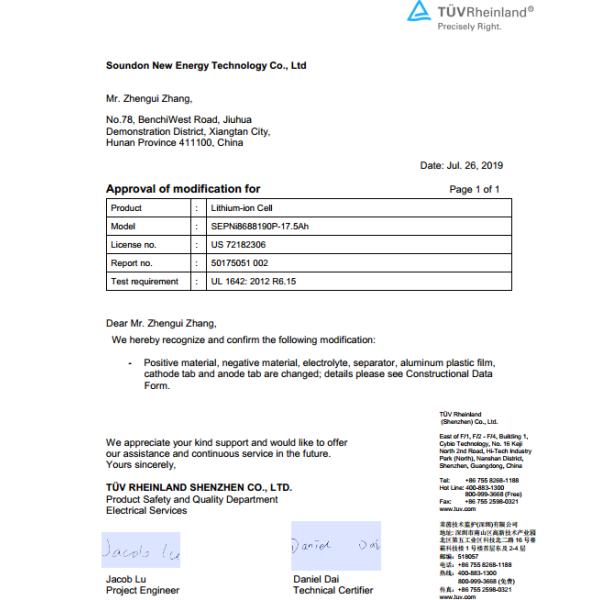

UL Certificate for 17.5Ah Battery cell

3U Standard Size 2.2Kwh NMC ESS Battery For Home Energy Storage

Energy Storage Battery Cabinet

3U Standard Size 2.2Kwh NMC ESS Battery For Home Energy Storage

Package

3U Standard Size 2.2Kwh NMC ESS Battery For Home Energy Storage3U Standard Size 2.2Kwh NMC ESS Battery For Home Energy Storage
